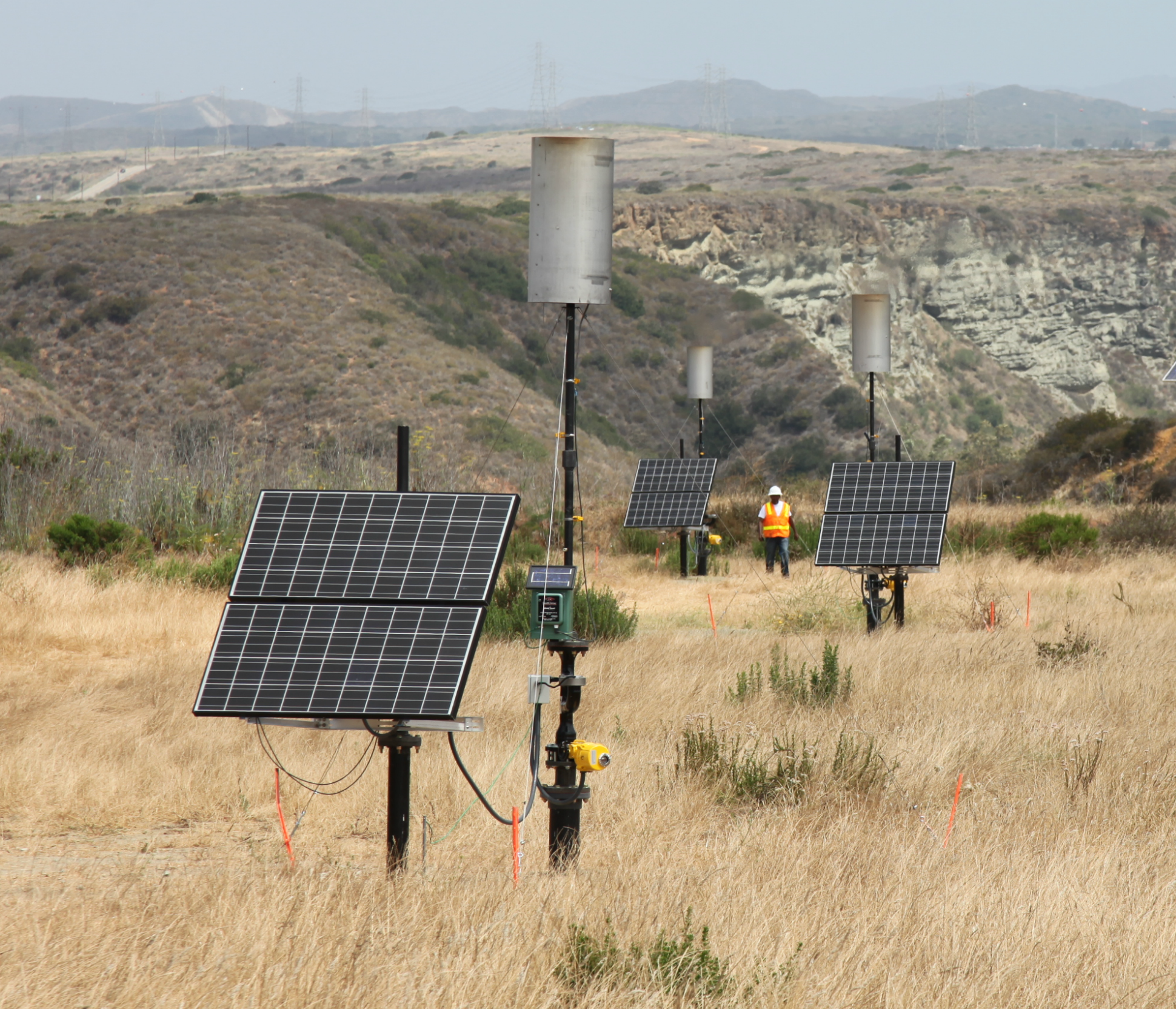

For many small landfills, a series of SPV-100A flares is much more economical than construction and installation of a conventional Landfill Gas Collection and Control System (LGCCS).

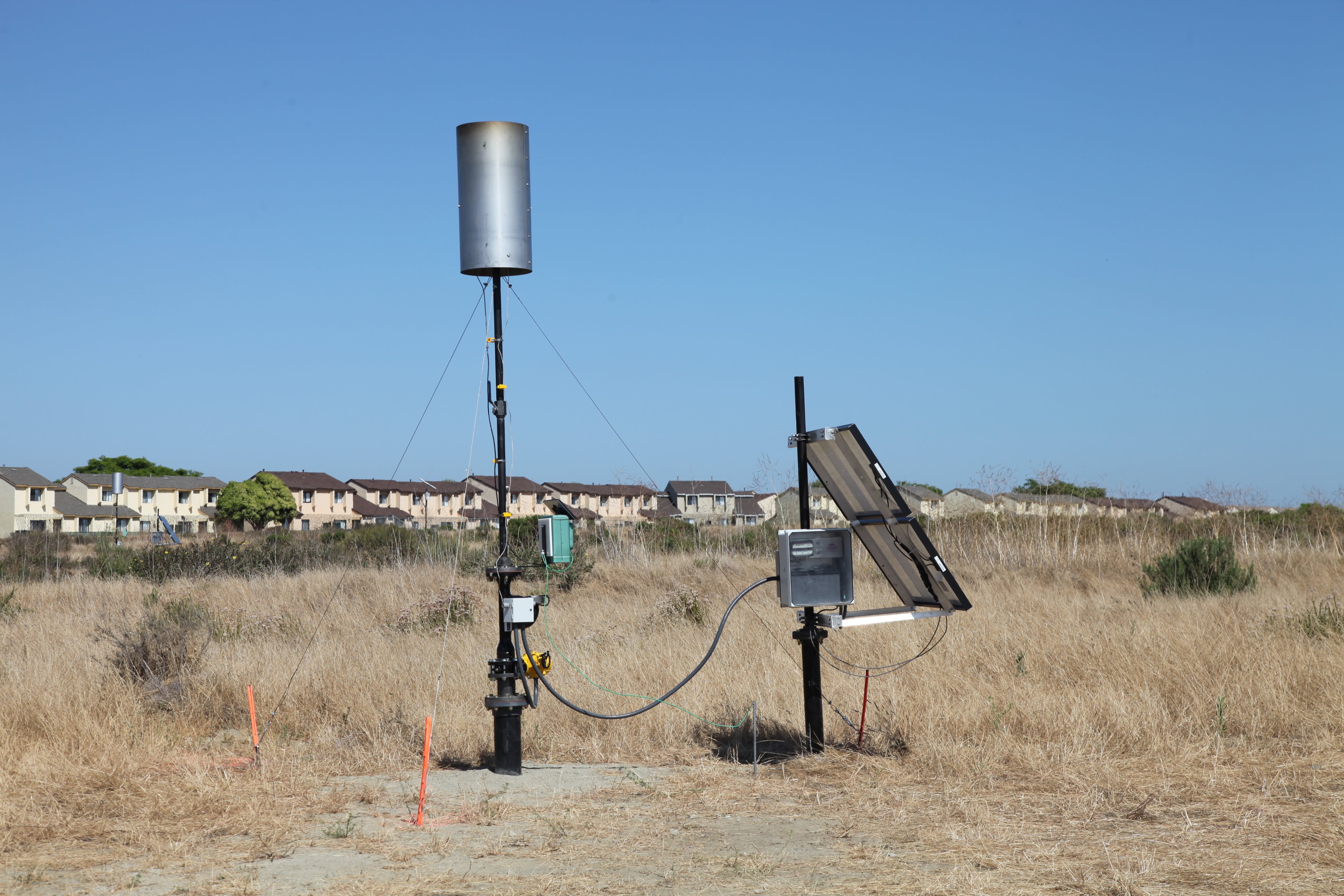

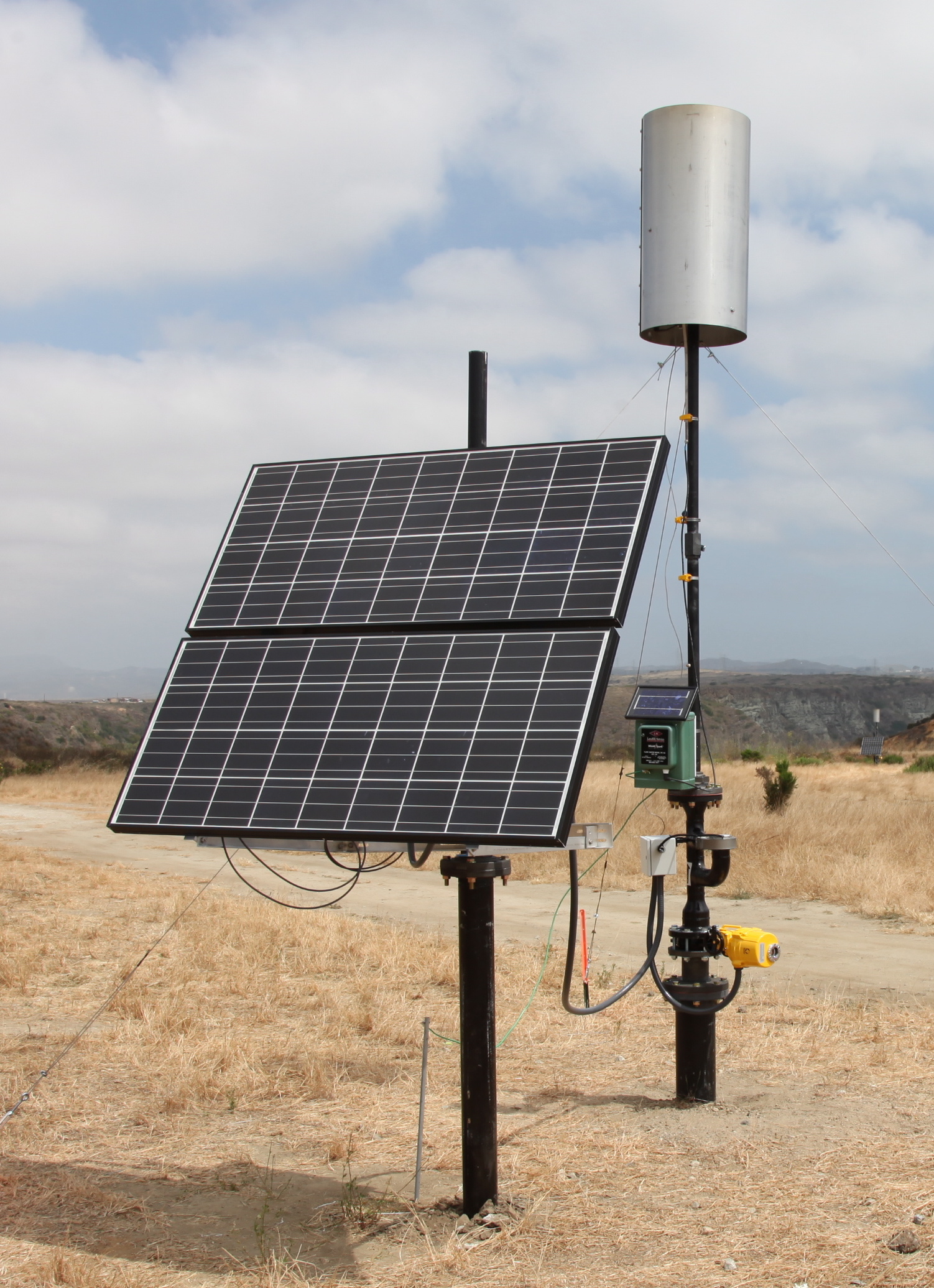

The SPV-100A is a self-contained solar powered landfill gas vent flare with a low vacuum blower and automatic shutoff valve for flame-out conditions. A fail safe feature closes the valve and shuts off the blower if battery voltage goes low. Design biogas flow rate range is 5-140 SCFM (8-240 NCMH).

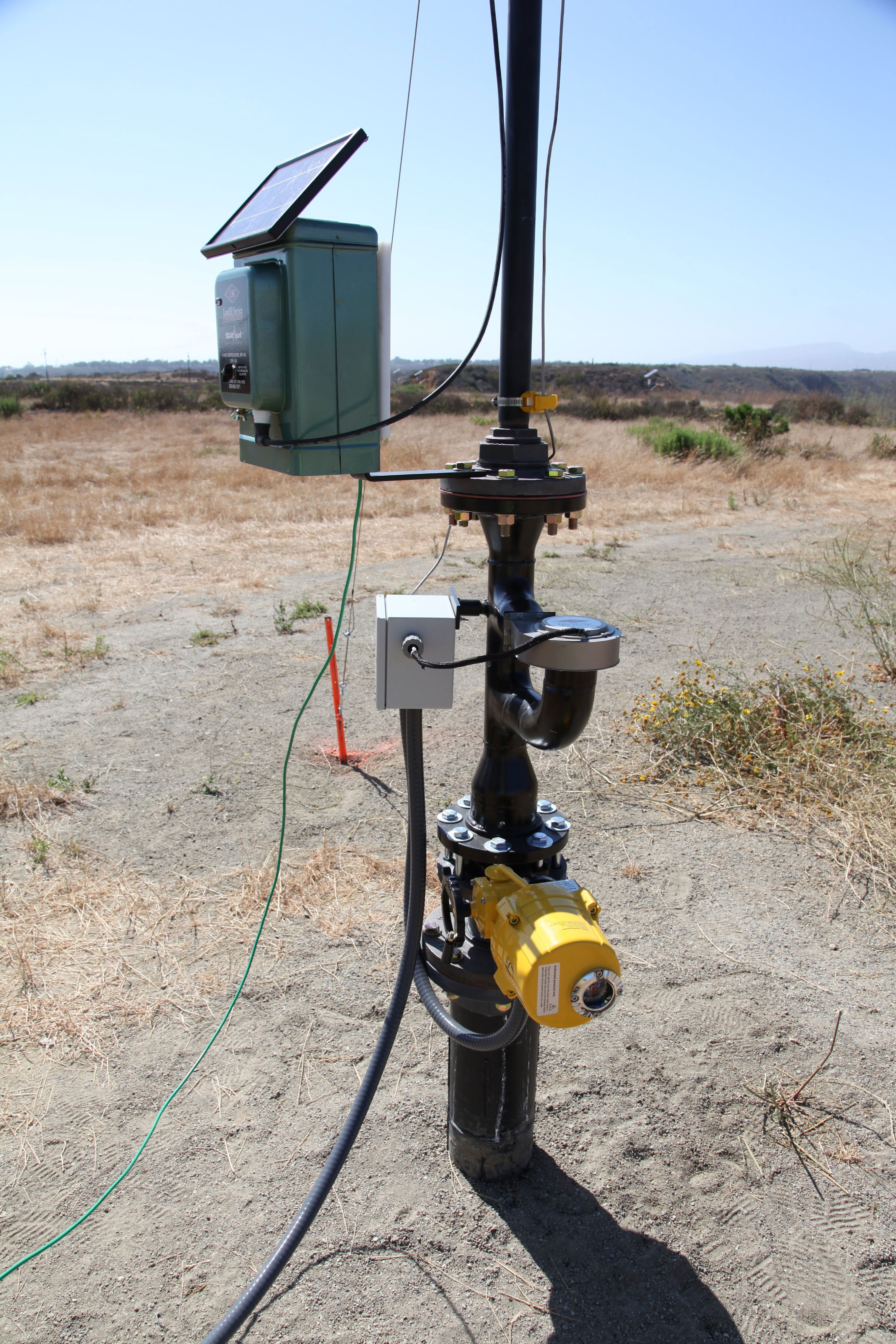

The 24 volt DC automatic shutoff valve features built-in heater for valve actuator dehumidification and is controlled by a programmable relay for customized setpoint.

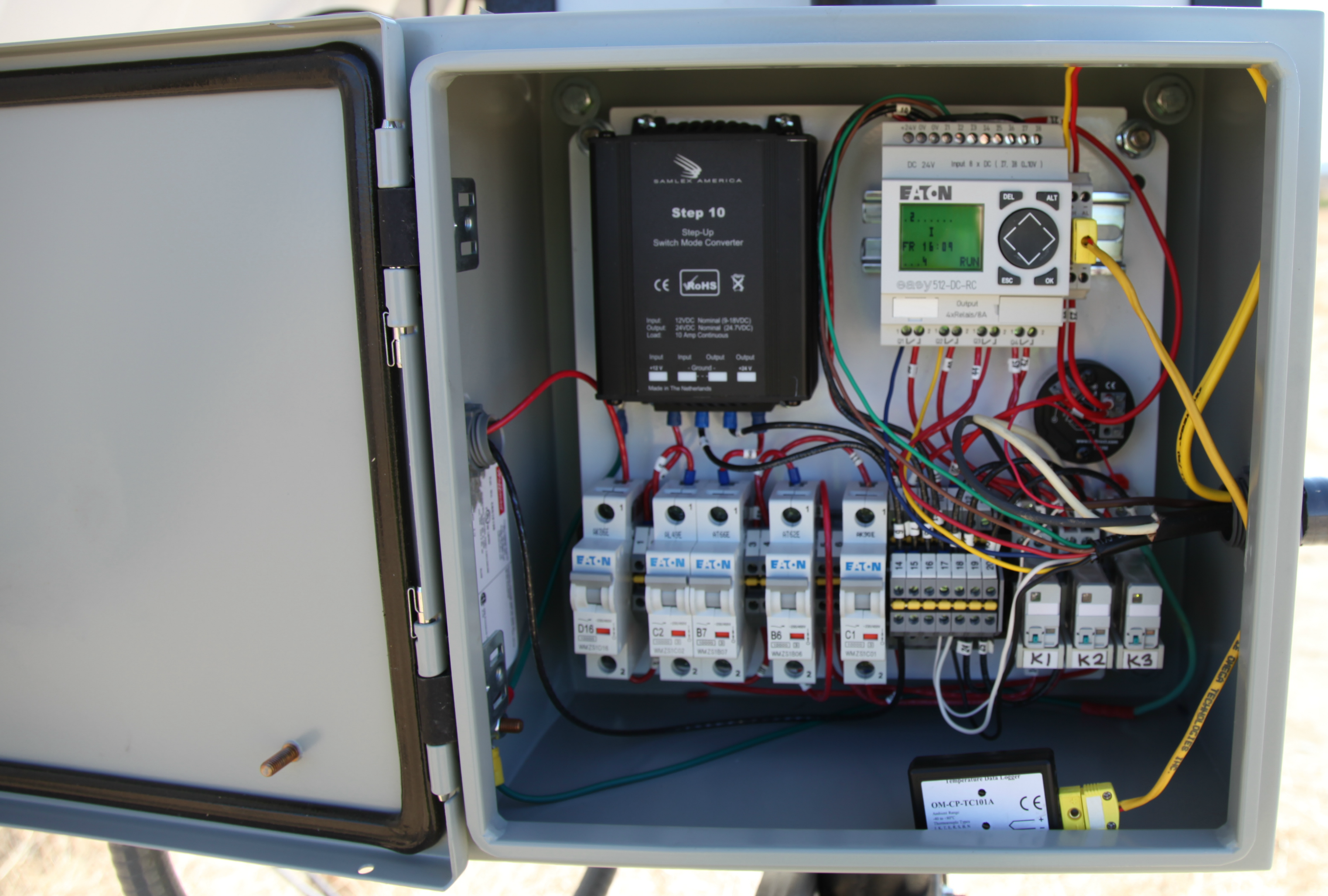

The SPV-100A features a NEMA 4 enclosure with breakers, power supply and programmable relay for valve operation. A voltage sensor and flare temperature data logger are also included.

Features:

• Self-Contained Solar Spark® Vent Flare System for Gas Flows from 5-140 SCFM (8.5-240 NCMH)
• 12 Volt DC Low Vacuum Ignition Protected Blower
• 270 Watt Solar Power System
• Automatic Shutoff Valve for Flameout Conditions
• Fail Safe Shutdown if System Voltage Goes Too Low
• Flare Temperature Data Logger Records Thermal History
• NEMA 4 Weatherproof Enclosure
